Product Description:

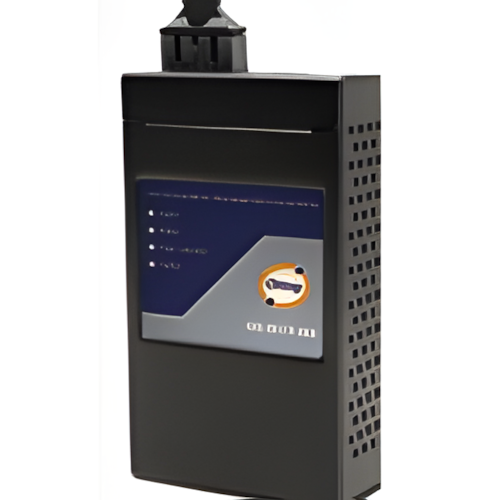

Industrial 1-port RS232/422/485 to 1-port 100FX multi-mode fiber Device
Server
- Redundant 5 multiple host devices supported to protect your
industrial network
- Versatile modes & event alarm by e-mail
- HTTPs & SSH protocol supported for secured management
- NAT router pass through
- IP table to prevent access from unauthorized IP address
- Confi gurable by Web-based and Windows utility (DS-Tool)
- Dual redundant DC power inputs of terminal block and power jack
- Rigid IP-30 housing design
- DIN-Rail and panel mounting enabled
Physical
Ports
|
100Base-FX Single mode ports (30KM, 1310nm, SC connector)
|
1
|
Serial Ports
|
Connector
|
DB9 x 1
|
Operation Mode
|
RS232 / RS422 / 4(2)-Wire RS485. Which can be confi gured by
DS-Tool |
Serial Baud Rate
|
110 bps to 460.8 Kbps
|
| Data Bits |
5, 6, 7, 8
|
Parity
|
odd, even, none, mark, space
|
Stop Bits
|
1, 1.5, 2
|
RS-232
|
TxD, RxD, RTS, CTS, DTR, DSR,
DCD, RI, GND
|
RS-422
|
Tx+,Tx-, Rx+, Rx-,GND
|
RS-485 (4-wire)
|
Tx+,Tx-, Rx+, Rx-,GND
|
RS-485 (2-wire)
|
Data+, Data-,GND
|
Flow Control
|
XON/XOFF, RTS/CTS, DTR/DSR
|
LED
indicators
|
Power indicator
|
PWR 1(2) / Ready:
Red On: Power is on and booting up.
Red Blinking: Indicates an IP confl ict, or DHCP or BOOTP server did
not respond properly.
Green On: Power is on and functioning Normally.
Green Blinking: Located by Administrator.
|
100Base-FX with SC connector
|
Green for port Link/Act at 100Mbps.
|
Serial TX / RX LEDs:
|
Red: Serial port is receiving data
Green: Serial port is transmitting data
|
Power
|
Redundant Input power
|
Dual DC inputs. 12-48VDC on
3-pin terminal block and power jack |
Power consumption (Typ.)
|
4 Watts
|
Overload current protection
|
Present
|
| Reverse polarity protection |
Present on terminal block |
Physical
Characteristic
|
Enclosure
|
IP-30
|
| Dimension (W x D x H) |
72(W) x 29.4(D) x 123.4(H) mm (2.83x1.16x4.86 inch.)
|
Environmental
|
Storage Temperature
|
-40 to 85°C (-40 to
185°F)
|
Operating Temperature
|
-40 to 70°C (14 to 140°F)
|
Operating Humidity
|
5% to 95% Non-condensing
|
Regulatory
approvals
|
EMI
|
FCC Part 15, CISPR (EN55022)
class A
|
EMS
|
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT),
EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
|
Shock
|
IEC60068-2-27
|
Free Fall
|
IEC60068-2-32
|
Vibration
|
IEC60068-2-6
|
Safety
|
EN60950
|
Warranty
|
5 years
|
|
