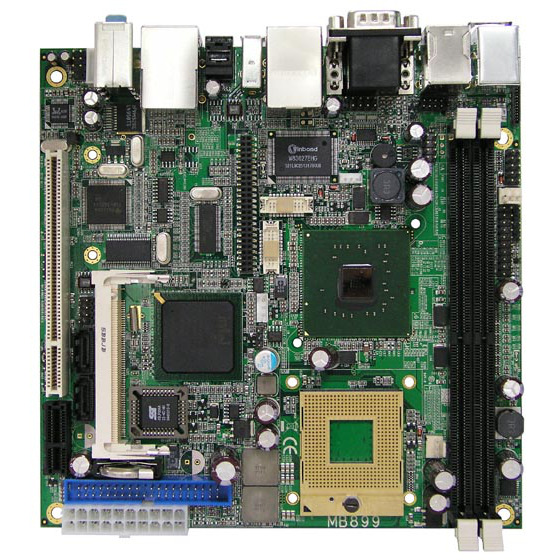

IBASE Technology Motherboard, ITX, Socket 478 for Yonah (Dual Core), 945GM, VGA, ICH LAN x 1 + Marvell 88E8053 GbE LANx1, 1394, PCIx1, (RoHS)

Manufacturer IBASE Technology Mfg. Part # MB899HF ITEM# 834324 Unit Price $282.00 (~CAD$351.52) Availability Back Order [ Get notified when product becomes available. ] Buy

Shipping and Handling: Singular Select... Regular [6-9 Business Days] -- $57.3[CAD$71.43] Priority [4-6 Business Days] -- $99.8[CAD$124.41] Extreme [2-4 Business Days] -- $148[CAD$184.49]  INTERNATIONAL GROUND SHIPPING: For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation No other hidden fees will be collected from you when packages arrive. Guaranteed [ Detailed Explanation ]

[ View Detail Product Info ]

Product Description: Socket M Intel® 945GME Mini-ITX motherboard w/ VGA, 1394, CF socket, 10/100 and Gigabit LAN Supports Intel® CoreTM2 Duo processors Up to 2.33GHz, 533MHz/667MHz FSB 2x DDR2 DIMM, Max. 4GB Supports CRT, LVDS, optional DVI 10/100 BaseT and PCI-E Gigabit LAN 2x SATA II, 6x USB 2.0, 2x COM, 1394 x2 Digital I/O, Watchdog timer 1x PCI, 1x PCI-E(x1), 1x Mini PCI, Optional 1x MiniPCI-E CPU Socket Socket M CPU Supports Intel® CoreTM2 Duo / CoreTM Duo processors, up to 2.33GHz CPU Front Side Bus ( FSB ) 533Hz / 667MHz Chipset MobileIntel® 945GME Express + ICH7M BIOS Award BIOS, ACPI supported System Memory Two DDR2 sockets supports up to 4GB DDR SDRAM PC400/533/667 DDR SDRAM Integrated VGA Intel® 945GME integrated VGA for CRT Supports DVMT 3.0 for memory allocation LVDS Intel® 945GME integrated for 18-bit dual channel LVDS Optional ID390 with Chrontel 7308 for 24-bit LVDS VGA Options Optional single/dual DVI cards with connectors on card or via cable Primary LAN ICH7M integrated 10/100 BaseT Ethernet Secondary LAN Marvell 88E8053 PCI Express Gigabit Ethernet Audio ICH7M integrated audio with AC97 codec Onboard NS LM4950 amplifier Multi I/O ICH7M, Winbond W83627EHF chipset Supports 1x IDE, 2x SATA, 2x RS-232, 1x FDD, 1x KB, 1x Mouse IDE Interface Built in ICH7M; One enhanced IDE channel supports 2 IDE devices; supports UDMA33/66/100 FDD Interface Onboard slim FDD connector   Serial Ports Two RS-232 ports Serial ATA Supports 2 ports 1394 Supports 2 ports (TI TSB43LV22) USB (2.0) Supports 6 USB ports (4 ports + 2 ports via pin header) IrDA Pin header Keyboard and Mouse Connector PS/2 type Watchdog Timer Generates system reset; 256 levels Hardware Monitoring Built in W83627EHF; monitors system/CPU temperature and voltage status Digital I/O 4 in / 4 out Expansion Slot PCI, MiniPCI, PCI-E(1), Mini PCI-E Edge Connectors VGA CRT, PS/2 KB/Mouse Mini DIN, two RJ-45, 1394, SPDIF, four USB, COM1 Onboard Connectors/Headers ATX power, COM2, Digital I/O, slim FDD, IrDA, USB5/6, IDE1, 2x SATA, FAN1/2, LAN Wakeup, LVDS1/2, Line out, Microphone, Speaker, CF socket (solder side), 1394 socket (solder side) Form Factor Mini-ITX Motherboard Dimensions 170mm x 170mm Power Consumption Intel® CoreTM Duo 2.0GHz w/ 2GB DDR2 +3.3V: 3.02A +5V: 2.81A +12V: 1.76A Rear Connectors Environmental Factors Operating Temperature: 0°C~60°C (32°F~140°F) Storage Temperature: -20°C~80°C (-4°F~176°F) Relative Humidity: 10%~90% (non-condensing)
