Product Description:

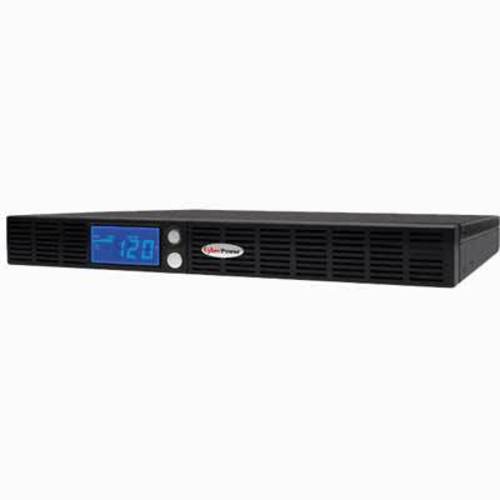

The Smart App Intelligent LCD Series UPS
is designed to protect office servers, corporate and departmental
networks, and network-based appliances. The Intelligent Digital-Blue
LCD diagnostic panel gives administrators immediate, real-time
information of the UPS vitals. LCD diagnostics include Input/Output
Voltage, Battery Capacity, Estimated Runtime, Load Level, On Battery,
Overload, and Silent Mode. The OR1000LCDRM1U has 6 outlets, USB/Serial
communication ports, and RJ11/RJ45 network protection. Automatic
Voltage Regulation (AVR) ensures that all your connected equipment is
receiving clean power and stabilizes the voltage to a nominal 120VAC.
PowerPanel Business Edition software (included) automatically saves and
closes open files and shutdowns the PC in an intelligent and orderly
manner. CyberPower also carries a 3-year unlimited warranty, has a
professional award-winning Technical Support, and offers a lifetime
Connected Equipment Guarantee of $175,000.
|
Plug/Connector Type:
|
NEMA 5-15P
|
|
Receptacles:
|
4 x NEMA 5-15R - Backup/Surge-protected
2 x NEMA 5-15R - Surge-protected
|
|
Switching Time:
|
4 ms |
|
Dataline Protection:
|
RJ-11 Modem/Phone/Fax
RJ-45 Network
|
|
Protection Type:
|
Dataline Surge
Black Out
AC Surge
EMI / RFI
Overload
Sags
|
|
Load Capacity:
|
1000VA/600W
|
|
Input Voltage:
|
110V AC |
|
Input Voltage Range:
|
90V AC to 140V AC
|
|
Output Voltage:
|
120V AC |
|
Frequency:
|
50 to 60Hz Output
|
|
Voltage Handling:
|
±5%
|
|
Waveform Type:
|
Simulated Sine
Wave |
|
Surge Energy Rating:
|
1030J |
|
Filtering:
|
EMI/RFI |
|
Circuit Breaker:
|
1 x 15A |
|
Network Management:
|
SNMP Manageable
Optional |
|
Overload Protection:
|
On Battery: Internal Current Limiting
On Utility: Circuit Breaker
|
|
Alarm:
|
Battery Low
On Battery
Overload
|
|
Bypass Switch:
|
Not Provided
|
|
Emergency Power OFF:
|
No |
|
Status Indicators:
|
On UnitPower On
Wiring Fault
LCD Panel:Input Voltage
Output Voltage
Battery Capacity
Load Level
Runtime
On Battery
Overload
Silent Mode
|
|
Interfaces/Ports:
|
USB
DB-9 Serial
|
|
Batteries:
|
4 x Maintenance
Free Sealed Lead-acid User-replaceable |
|
Backup/Run Time:
|
3 Minute 600W Full-load
13 Minute 300W Half-load
|
|
Battery Life:
|
3 Year to 6 Year
|
|
Battery Recharge Time:
|
8 Hour Typical
|
|
Temperature:
|
32 °F (0 °C) to 95 °F (35 °C)
Operating
5 °F (-15 °C) to 113 °F
(45 °C) Non-operating
|
|
Humidity:
|
0 to 95% Non-condensing
0 to 95% Absolute Humidity
|
|
Altitude:
|
0 " to 120000 " Operating
0 " to 600000 " Non-operating
|
|
Color:
|
Black |
|
Form Factor:
|
1U Rack-mountable
Rack-mountable |
|
Power Cord/Cable:
|
120 " |
|
Dimensions:
|
1.75" Height x
17.25" Width x 15.5" Depth |
|
Pallet Qty :
|
24 |
|
Shipping Dimensions :
|
21.75in Width x
6in Depth x 21.25in Height - Display Box |
|
Case Pack Qty :
|
1 |
|
Package Contents:
|
UPS Unit
Rack Ears (2)
User Manual
Power Management Software
Warranty Card
Serial Cable
Phone Cable
USB Cable
|
|
Additional Information:
|
Intelligent
LCD Diagnostic Display: The innovative front panel LCD can be used to
display detailed information on the UPS status and current power
conditions. The LCD displays 11 different diagnostics: Input/Output
Voltage, Battery Capacity, Estimated Runtime, Load Level, On Battery,
Overload, and Silent Mode.
Automatic
Voltage Regulation (AVR) - AVR takes irregular AC power and converts it
into a consistent Sinewave so sensitive electronic equipment can
achieve its optimal performance. This not only conserves battery life,
but also delivers a more stable signal to your connected equipment.
Microprocessor-based
Digital Control: Digital routing is maintained through a network of
integrated circuitry and discrete values are used for internal system
processing, which significantly increases efficiency and response of
CyberPower UPSs.
EMI/RFI - Provides
shielding against electromagnetic interference & radio frequency
signals. Most commonly, this is used to prevent line noise or humming
that occurs over telephone lines or stereo electronics.
USB
Connectivity - HID compliant USB port enables full integration with
built-in power management and auto shutdown features of Windows, Linux
and Mac OS X.
PowerPanel Business
Edition: Supporting up to 25 UPS units, the Business Edition also has
application/OS shutdown, event logging (power, surge, voltage
variations), hibernation mode, internal reports and analysis, and
remote management.
Metal Housing: Rigid metal
construction allows for placement in areas with a demanding environment.
Audible Alarms - Audible tones
identify when the unit is running off battery power, unit overloads and
low battery.
Resettable Circuit Breaker -
Convenient unit reset switch in case of an overload.
3-year
Warranty - CyberPower will replace damaged units if within 3 years of
purchase date. We stand behind our products and guarantee quality.
CyberPower also offers a #1 rated technical support team that will
assist you with product, installation, or warranty concerns --- Free of
Charge!
ISO & Safety Certifications
- All CyberPower manufacturing facilities are ISO-9001 Quality Tested.
Our products are also certified by the FCC, cUL, and UL.
Windows
Vista (TM) Compliant - Our Power Management software has been fully
tested and compliant with Windows 9x, 200x, Server, XP, and Vista.
|
|
Certifications & Standards:
|
FCC Class B certified
cUL
UL 1778
|
|
Software Included:
|
PowerPanel
Business Edition Software |
|
Country of Origin:
|
China |
|
Standard Warranty:
|
3 Year Parts
& Labor/Replacement |
|
Parts Warranty/Labor:
|
3 Year Parts
& Labour |
|
Additional Warranty Information:
|
CyberPower
stands behind its products by offering an industry leading 3-year
warranty. CyberPower also has a #1 rated technical support team that
will assist you with product, installation, or warranty concerns ---
Free of charge. |
|
