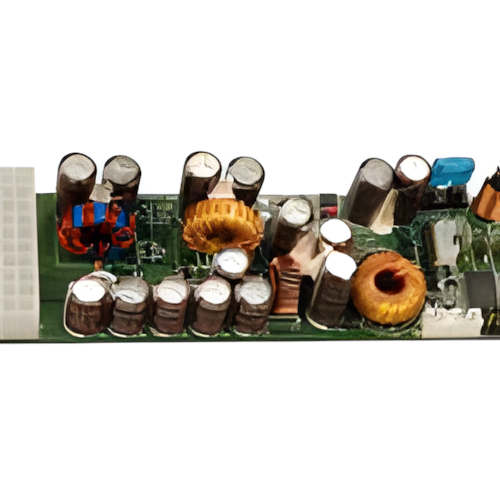

140W DC/DC Smart ATX Converter Module for Vehicle
Features
- Wide Input Range: 6-30V DC
- Smart system on/off control
- 6 selectable power on/off timing modes
- Load Down Protection
- Over Voltage Protection
- Short Circuit Protection
- Over Current Protection
- Battery Voltage Monitor
- Amplifier On-Delay control
- RoHS Compliant
- Compact Size
- IrDA Remote Control off (Options)
Specifications
| Output |
5V@10A (Max.), 3.3@10A (Max.),
12V@4A (Max.), -12V@0.15A (Max.) & 5VSB@1.5A (Max.) |
| Max. Total Output |
140W |
| Input |
6VDC to 30VDC
Min. Input Operating Voltage: 5.7V
Max. Input Operating Voltage: 30V
|
| Deep-Discharge Shut down Voltage |
10.6V |
| Startup Voltage |
8V |
| Efficiency |
up to 90% |
| Dimensionss |
45mm x 160mm |
| Operating Temperature |
-20°C ~ 85°C |
| Storage Temperature |
-40°C ~ 125°C |
|
