Product Description:

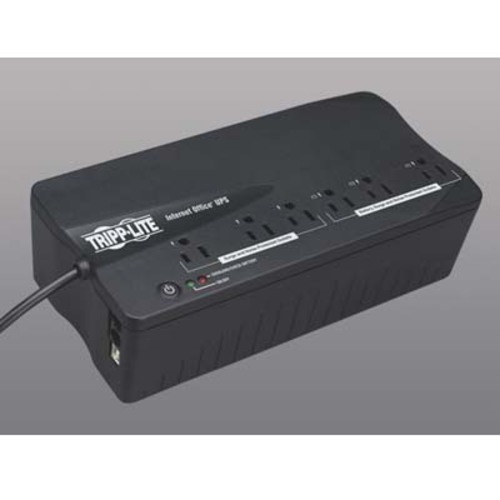

MODEL- INTERNET350U VENDOR- TRIPPLITE
FEATURES- Internet Office UPS System- Black finish
Ultra-compact standby UPS offers complete protection for PC and
workstations; 6 widely spaced outlets (3 UPS/surge, 3 surge-only);
USB port, cabling and included PowerAlert monitoring software;
Single line TEL/DSL modem suppression; $100,000 Ultimate Lifetime
Insurance (USA, Puerto Rico & Canada only).
Tripp Lites INTERNET350U standby UPS offers complete protection for
PCs, workstations and other sensitive electronics in an attractive
ultra-compact, mountable housing. Prevents data loss and system
downtime by providing battery supported AC output during brownouts
and blackout conditions. 6 widely spaced output receptacles
accommodate large transformer plugs without blocking outlets. 3
outlets with full battery support and surge suppression protect
computers, monitors and other vital system components from loss of
power. 3 additional outlets with surge suppression-only are ideal
for printers and other accessories not requiring battery support.
Single line telephone suppression jacks protect a single directly
connected modem, fax machine, cordless phone or other peripheral on
a single standard dialup or DSL phone line connection. USB port
with PowerAlert monitoring software and cabling enables safe
unattended system shutdown in the case of extended power failure.
Audible alarm and front panel LEDs offer status information
regarding line and battery power operation. 350VA/180 watt power
handling ability supports entry-level PCs for up to 15 minutes
during power failures.
Find the TrippLite UPS appropriate for your needs. Try the TrippLite UPS Sizing Guide Today.
Includes INTERNET350 UPS System, PowerAlert Software & USB cable,
Instruction manual with warranty information.
* INTERNET350U standby UPS offers complete protection from blackouts,
brownouts and surges on both AC and TEL/DSL line connections.
* 6 widely spaced outlets accommodate large transformer plugs without
blocking outlets.
* 3 battery supported outlets protect computer, monitor and vital system
peripherals, plus 3 additional surge suppression-only outlets for
printers and other system accessories not requiring battery support.
* Provides battery derived AC output during blackouts and brownouts.
* 350VA/180 watt power handling ability supports a variety of PCs,
workstations and other sensitive electronics.
* Supports entry-level PC systems up to 15 minutes during blackout
conditions.
* Built-in single line TEL/DSL line surge suppression protects modems, fax
machines or cordless phones on a single phone line connection.
* USB port, PowerAlert software and cabling offer safe unattended shutdown
without data loss during extended outages.
* Supports Tripp Lites Watchdog system service to restore operation to
locked equipment through soft reboot of application/OS or hard power
off/on reboot of connected equipment - ideal for unattended kiosk
applications.
* Hot swappable user battery replacement supported via battery access door.
* Space saving, ultra-compact housing fits almost anywhere.
-- SPECIFICATIONs -----------------------------------
OUTPUT - Volt amp capacity : 350 VA
Watt capacity : 180 Watts
Nominal voltage : 120V AC
Voltage regulation: BATTERY MODE: PWM sine wave output 115V
+/-5%.
Frequency
regulation: LINE MODE: Passes line frequency of 60Hz
+/-10%.
BATTERY MODE: Inverter output regulated
to 60Hz +/-0.5Hz.
Outlets : (6) NEMA 5-15R output receptacles
(3 with UPS and surge suppression/
3 with surge-only).
INPUT - Maximum amps/watts: 12A/1440 watts
Connection type : NEMA 5-15P
Cord length : 6 ft., 16 gauge
Recommended
Service: 15A 120VAC
BATTERY - Full load runtime : 4 minutes (350VA)
Half load runtime : 12 minutes (175VA)
DC system voltage : 12 VDC
Typical lifespan : 3~6 years, depending on usage
Recharge rate : 2~4 hours to 90%
Battery Access : Hot-swappable batteries are accessible
via battery door.
LEDS ALARMS & SWITCHES-
Front panel LEDs : 2 LEDs indicate line power, battery power
status.
Alarms : Audible alarm beeps at regular intervals
to indicate battery backup operation.
Alarm also sounds during self-test
operation.
Switches : Combination power off/on/self-test push
button switch.
SURGE/NOISE SUPPRESSION-
AC suppression : 380 joules
AC suppression
response time: Instantaneous
Dataline
suppression: Single line TEL/DSL surge suppression
with RJ modular connectors (center 2
wires protected, 260V clamping). 1
input jack and 1 output jack. Includes
1 phone cable.
EMI/RFI AC noise
suppression: Yes, >40dB @ 1 MHz
COMMUNICATIONs -
Network
monitoring port: Single built-in USB port supports on
battery, low battery and power restored
messaging. Interface supports timed
inverter shutoff after unattended
shutdown. Compatible with Tripp Lites
PowerAlert and Watchdog service
software.
Software & cabling: Includes USB cable and PowerAlert UPS
monitoring software.
WatchDog
compatibility: Yes, compatible with Tripp Lites Watchdog
system service to restore operation to
locked equipment through soft reboot of
application/OS or hard power off/on
reboot of connected equipment - ideal
for unattended kiosk applications.
LINE/BATTERY TRANSFER-
Transfer time line
to battery mode: 2~4 milliseconds
Low voltage
transfer: Switches to battery power as line voltage
decreases to 98 volts or less. Resets
back to line power mode as line voltage
increases to 103V or higher.
High voltage
transfer: Switches to battery power as line voltage
increases to 147V or higher. Resets
back to line power as line voltage
decreases to 143V or less.
COLD START - Yes, inverter can be "cold started" to enable temporary AC
output during a power failure.
CONSTRUCTION- ABS
FORM FACTOR - Ultra-compact desk/floor mount
APPROVALS - UL1778 (USA), cUL (Canada), FCC Class B (Emissions), NOM
(Mexico), FCC Part 68/Industry Canada (telecommunications).
DIMENSIONS - 10.5"w x 7.6"h x 5.0"d WT.- 7.7 lbs.
