AAEON

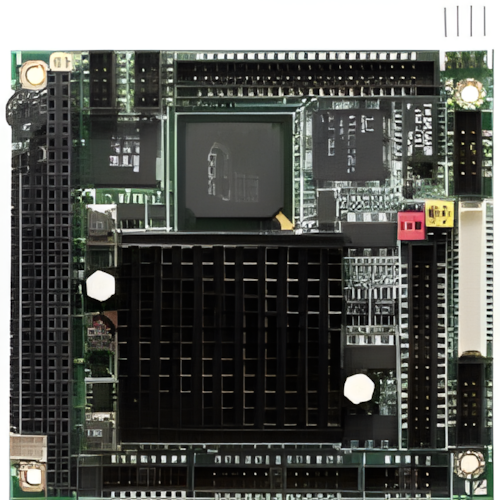

PC/104 Board.AMD LX800.LCD.DDR LAN.2COM4USB.PC/104.AT.Rev A1.0


1018468_AAEON_TFPFM540IA10_2.png-
Manufacturer AAEON
Mfg. Part # TF-PFM-540I-A10
ITEM# 547202
Unit Price $346.16 (~CAD$431.49)
Availability In Stock
Buy


Shipping and Handling:
 INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation

No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]
[ View Detail Product Info ]


Product Description:
AAEON Technology, a leading company in embedded boards manufacturing with a full range of PC/104 CPU Modules, launches an economic version PC/104 CPU Module—PFM-540I. Its compact size and rich functionality ensures the most cost effective and compatible module to coincide with your existing system planning devices.

PFM-540I adopts an AMD Geode LX800 processor that is more cost effective compared to other PC/104 CPU modules on the market. This model supports DDR SODIMM Memory max. 1GB for DDR333 and 512MB for DDR400. Although PFM-540I is a small board, it offers the full functions customers demand. The chipset of PFM-540I deploys AMD LX800 and CS5536 that makes this board achieve high performance. It features one 10/100Base-TX Ethernet port, four USB 2.0 ports, two serial ports, one parallel port, IR interface, watchdog timer and includes PC/104 expansion.

PFM-540I is a RoHS compliant product that is fanless and fully supports ISA and CFD. For Operating Systems, it supports regular embedded OS, such as WinCE, and WinXP Embedded, Windows XP Professional for easy compatibility with customers' existing OS systems.

Feature

  • Onboard AMD Geode LX800 Processor
  • 18/24-bit TFT LCD Panel
  • CFD Type I, UDMA 33
  • USB 2.0 Port x 4, COM Port x 2 and Parallel Port x 1
  • One 10/100Base-TX Ethernet
  • +5V/AT Only

Application
  • Military
  • Panel
  • Operator terminal
  • Transportation
  • Aviation
  • KIOSK


Specifications

System

  • Form Factor
    PC/104
  • Processor
    Onboard AMD LX 800 (500MHz) Processor
  • System Memory
    200-pin DDR SODIMM x 1, Max 1GB for DDR333 and 512MB for DDR400
  • Chipset
    AMD LX 800+ CS5536
  • I/O Chipset
    ITE IT8712F-A
  • Ethernet
    Realtek RTL 8139DL, 10/100Base-TX
  • BIOS
    AWARD 512KB FLASH ROM
  • Watchdog Timer
    Generates a time-out system reset
  • H/W Status Monitoring
    Supports power supply voltages and temperature monitoring
  • Solid Storage Disk
    CompactFlash Type I Slot x 1
  • Expansion Interface
    PC/104 socket x 1
  • Power Requirement
    +5V/AT
  • Power Consumption (Typical)
    AMD Geode LX 800 (500MHz), DDR333 256MB
    0.92 A@5V
  • Battery
    Lithium battery
  • Board Size
    3.55" (L) x 3.775" (W) (90mm x 96mm)
  • Gross Weight
    0.25 lb (0.11 kg)
  • Operating Temperature
    32oF ~ 140oF (0oC ~ 60oC)
  • Storage Temperature
    -40oF~176oF (-40oC~80oC)
  • Operating Temperature
    0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours)
    108,795

Display: Supports CRT/ LCD simultaneous display

  • Chipset
    AMD LX 800
  • Memory
    Shared system memory up to 254 MB
  • Resolutions
    Up to 1920X1440 @ 32bpp for CRT
    Up to 1024 x 768 @ 24bpp for LCD
  • LCD Interface
    18/24-bit TTL TFT LCD

I/O

  • MIO
    EIDE x 1 (UDMA-33 x 1), Keyboard+Mouse x 1, Floppy Disk Drive x 1, RS-232 x 1, RS-232 / 422 / 485 x 1, Parallel x 1
  • IrDA
    One IrDA Tx/Rx header
  • USB
    Two 5x2 pin headers support 4 USB 2.0 ports



[Disclaimer for Product Information]
