Product Description:

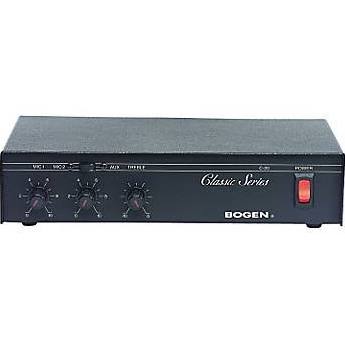

The Bogen Classic Series Models
C10, C20, C10MOH, and C20MOH offer dependable performance and
flexibility. The C10 and C10MOH are rated at 10 watts. The C20 and
C20MOH are rated at 20 watts. All models are UL and CSA listed.
The MOH models provide a music-on-hold output from the Aux input
source.This output is unaffected by paging. Screw terminal connections
are provided for 600.@ 1 volt and 8. at 1 watt. A level control is also
provided on the rear panel.
The Classic Series is designed with discreet complementary transistor
circuitry to assure maximum reliability of power output stages.
- C10(MOH) & C20(MOH)
have 10W and 20W output power, respectively
- Transformer isolated 4.,
8., 16., 25V and 70V output taps
- Rear panel auxiliary
receptacle
- One dedicated MIC 1 input
— Lo-Z balanced
- One switchable MIC 2/Aux 1
input
- Contact muting of Aux
input
- Transformer-isolated 600.
telephone paging input
- Separate rear
panel-mounted TEL volume control
- Voice activated muting of
Aux input by Tel input
- Variable trigger
threshold for voice activation
- MOH models provide 1W @ 8.
and 1V @ 600. outputs of Aux input (only for telephone musicon- hold
inputs)
- Optional wall mount kit
- Optional impedance
matching transformer 10k/600.
- UL and CSA listed
|
