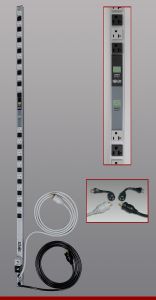

MODEL- PDUMV40            VENDOR- TRIPPLITE

FEATURES- Metered PDU/Power Distribution Unit
       Safe, reliable power distribution with digital current meter.
       Dual Circuit 71 inch PDU; Dual Independant Current Monitoring
        Displays; 32 NEMA 5-15/20R 120V outlets color coded for each
        circuit; Two 20A independent circuits of 16 outlets each; Color-
        coded input power cords for each circuit; Supports connection to
        NEMA L5-20P or 5-20P 120V 20A wall receptacle.
       The PDUMV40 provides an efficient and manageable power distribution
        solution for multiple servers with dual redundant power supplies,
        or any other application that requires numerous outlets, high
        capacity, and a compact form factor.
       Dual input current monitoring display shows AC power consumption for
        each independent circuit. Switchless design eliminates accidental
        shutoff of connected equipment. Unfiltered electrical pass-through
        without a power switch makes the PDUMV40 ideal for distributing
        alternate waveform UPS or generator power in rack enclosures,
        network closets, and more. Each of two independent circuits
        supports 16 outlets and equipment loads up to 2,400 watts. 32
        outlets and 4,800 watts total capacity without consuming additional
        rack space.
    Includes PDUMV40 Dual Vertical Circuit/Metered PDU, Mounting Hardware,
      Two NEMA L5-20P to 5-20P plug adapters, Owner's Manual with warranty
      information.
* All-in-one Zero U form factor enables efficient, single-enclosure
  installations.
* Dual independent circuit design delivers high capacity across 32 outlets
  in minimal space.
* Input plugs, input power cords, breakers and outlets are color-coded to
  match each independent 20A circuit, allowing simplified cable management
  for multi-server configurations.
* Dual digital current monitoring displays (1 for each circuit).
* 10 ft. dual input power cords increase mounting flexibility; mounting
  hardware included.
* Combines the advantages of two separate high-current PDU's without the
  extra expense, increased space requirements and added management
  complexity.
* Includes two adapters that convert NEMA L5-20P input plugs to NEMA 5-20P.
  Twist-lock interface ensures secure connection.
* Switchless design prevents accidental shutdown of connected equipment.

  -- SPECIFICATIONs -----------------------------------
OUTPUT       - Volt amp capacity  : 40A total (20A each circuit)
               Watt Capacity      : 4800W (2400W for each circuit)
               Nominal voltage    : 120V
               Outlets            : (32) NEMA 5-15R/20R
               Overload protection: 40A
INPUT        - Input amps         : 40A
               Connection type    : 2 NEMA L5-20P with 2 NEMA 5-20P plug
                                      adapters.
               Cord length        : Two 10-ft. power cords
               Recommended
                electrical service: Requires two dedicated 120V 20A
                                      circuits with L5-20R or 5-20R wall
                                      receptacles.
LEDs, ALARMS & SWITCHES-
               Front panel LEDs   : Dual digital current monitoring
                                      displays (1 color-coded ammeter for
                                      each circuit).
               Switches           : Switchless design
MATERIAL     - Aluminum
FORM FACTOR  - Zero U vertical rackmount, wall-mount, raceway, workbench
                 and more.
APPROVALS    - Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03
                  (Canada), RoHS Compliant.
DIMENSIONS   - 71.25"w x 3.0"h x 1.5"d          WT.- 8.2 lbs.
