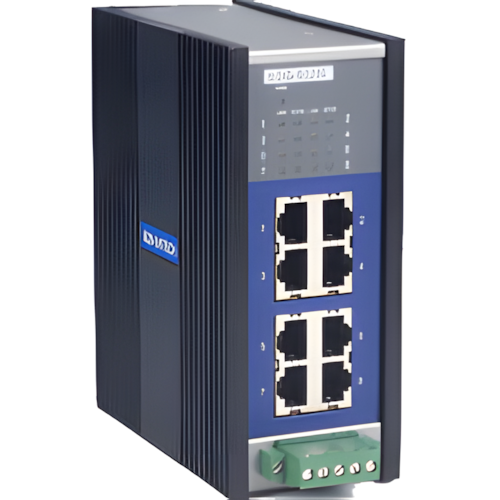

Product Description:
The EDG-6528 is extremely compact and can be mounted on a DIN-rail or a
panel, so it is suitable for any space-constrained environment. The
power line of EDG-6528 supports up to 3,000 VDC surge protection, which
secure equipment against unregulated voltage and make systems safer and
more reliable. For extreme operating temperatures, the EDG-6528I covers
a range between -40° and 85° C. With such a wide range you can
use the
EDG-6528I in some of the harshest industrial environments that exist.
The LED indicators make troubleshooting quick and easy. Each port has a
couple of LEDs that display the link status, power failure, and port
activity for immediate on-siteThe LED indicators make troubleshooting
quick and easy. Each port has a couple of LEDs that display the link
status, power failure, and port activity for immediate on-site
diagnostics.
Features
| Provides 8 x 10/100
Mbps Ethernet ports with RJ-45 connector
Supports full/half duplex fl ow
control
Supports MDI/MDIX auto crossover
Provides broadcast storm protection
Embedded with a switch controller,
supports auto-negotiation
Embedded with the memory buffer,
supports store-and-forward transmission
Supports +12 ~ 48 VDC voltage
Provides surge protection 3000 VDC
for power line
Supports 4000 VDC Ethernet ESD
protection
Provides fl exible mounting: DIN rail
and panel-mounting
Supports wide-range operating
temperature: -40 ~ 85° C (EDG-6528I)
Supports two individual power sources
|
|
