IBASE Technology

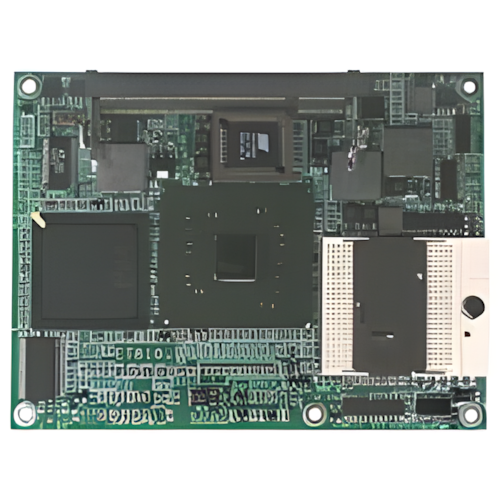

Socket 479 COM Express CPU Module with Intel 915GM Chipset Pentium/Celeron M ICH6M LAN x 1, GMCH VGA, w/o heatsink/cooler (FAN479-IPM)

Manufacturer	IBASE Technology
Mfg. Part #	ET810
ITEM#	383219
Unit Price	$272.00 (~CAD$339.05)
Availability	In Stock
Buy

[Suggested Accessory Items]

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

Product Description:
FEATURES

Supports Intel^® Pentium^® M / Celeron^® M;

Up to 2.0GHz CPU speed, 400MHz/533MHz FSB

Supports up to four x1 PCI-E, one x16 PCI-E, four PCI

DDR2 SO-DIMM x1, Max. 1GB memory

ICH6M Integrated 10/100 BaseT Ethernet

Intel^® 915GM Integrated VGA; Supports CRT / LVDS

CPU temperature detection

ET810 SPECIFICATIONS

CPU Type
Socket 479 for Intel^® Pentium^® M / Celeron^® M processor; or CPU on board; up to 2.0GHz CPU speed
CPU External Clock
400MHz / 533MHz
Chipset
Intel^® 915GM chipset
ICH6M Controller Hub
BIOS
Award BIOS; 4Mbit
Memory type
One DDR2 SODIMM socket, Max. 1GB capacity
VGA
Intel^® 915GM integrated VGA
Supports CRT & LVDS interface (18-bit single or dual channel LVDS)
DVMT 3.0 support; Max. memory allocation based on total system memory
LAN
ICH6M integrated LAN controller (10/100Mb)

IDE
Built-in ICH6M, IDE1, 2 (Ultra DMA 33/66/100)
Audio
ICH4 built-in audio controller + AC97 Codec ALC650

Multi I/O
ICH6M; 1x IDE (UDMA33/66/100), 2x SATA
USB
Up to 8 USB ports (USB 2.0, to be supported by the baseboard)
Other Features
IrDA, Boot on LAN

COM Express Interface to Baseboard
Supports USB (8 ports), 4x PCI, 6x PCI Express (x1), 1x PCI Express (x16), 2X SATA, LVDS, VGA, TV-out, LAN, AC97, LPC, GPIO
Dimensions
95mm x 125mm

Environmental Factors:

Operating Temperature

0°C~60°C (32°F~140°F)

Storage Temperature

-20°C~80°C (-68°F~176°F)

Relative Humidity

10%~90% (non-condensing)
