Product Description:

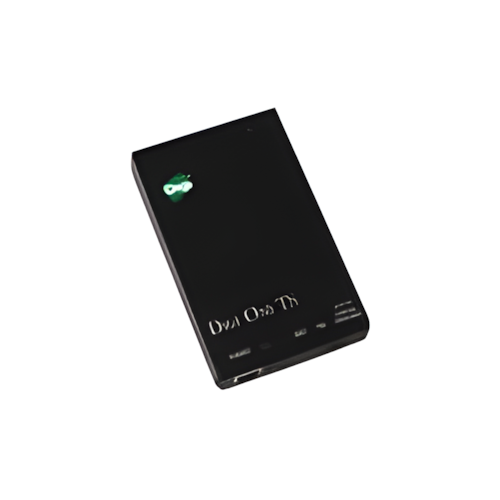

PortServer TS delivers standard serial-to-Ethernet connectivity simply
and reliably. It easily addresses the growing need to connect
individual devices to the network over industry standard Ethernet in
many applications.
PortServer TS is ideal for applications requiring COM ports or where
TCP/UDP Sockets, or UDP multicast functionality is required. It
includes Digi's patented RealPort®
COM port redirector technology, which makes it possible to establish a
connection between the host and networked serial device by creating a
local COM or TTY port on the host computer, allowing existing software
applications to work without modification.
- Standard, reliable serial-to-Ethernet connectivity
- 1, 2 or 4 ports; RS-232 RJ-45 serial
- 9-30VDC power supply
- Easy configuration using installation CD
Product Type: |
Device
Server |
Interfaces/Ports: |
1 x RJ-45 |
Data Transfer Rate: |
10Mbps Ethernet
100Mbps Fast Ethernet
230Kbps Serial
|
Management: |
SNMP (read/write)
Telnet and Reverse Telnet
Easy configuration through web
interface (HTTP/HTTPS)
Digi Port Authority - Remote
management diagnostics and auto-discovery tool
|
Security Features: |
SSHv2
Port buffering
Patented RealPort with encryption for
COM and TTY ports
|
Package Contents: |
PortServer TS 1 Device Server
Power supply
RJ-45/DB-9F crossover cable
|
Form Factor: |
Wall-mountable |
Dimensions: |
0.95" Height x
3.33" Width x 5.25" Depth |
Shipping Dimensions : |
3.8" Height x
7.8" Width x 10.7" Depth |
Standard Warranty: |
5 Year |
|
