CPU On Board
VIA Eden / VIA C3, 1GHz (up to 1.4GHz supported)

Cache
Two 64KB L1 cache and one 64KB L2 cache CPU integrated
Chipset
VIA CN400 / CN333 Chipset:
North bridge: CN400 / CN333, 681-pin HSBGA

South bridge: VT8237, 529-pin PBGA

Front Side Bus
100/133/200MHz
BIOS
Award BIOS, ACPI supported
System Memory
One DDR DIMM socket

Supports up to 1GB DDR 200/266/333/400 SDRAM
VGA
VIA CN400 integrated

128-bit Unicrhome Pro 3D/2D controller

Supports 16/32/64MB frame buffer size
Optional TV Out support (MB720F)

LCD
Supports 48-pin LCD interface for optional ID380
daughter card supporting 18-bit / 24-bit LVDS LCD
LAN
LAN1: Built-in 10/100 LAN MAC + VT6103 PHY

LAN2: Optional RTL8110S-32 Gigabit LAN controller
Audio
VIA VT8237 built-in sound controller + AC97 Codec ALC655

5.1 channel (Line-out, Line-in, Mic)

LPC I/O
Winbond W83697HF

Parallel x1, COM1, COM2 (RS-232), FDC 1.44MB (Slim), IrDA, Hardware Monitor( 2 thermal inputs, 6 voltage monitor inputs, 1 chassis open detection, 2 fan headers)
Secondary I/O
Fintek F81216D for COM3 / COM4 (RS-232)

1394 (option)
VT6307 1394 controller for 2 ports

USB
6 ports, USB 2.0 ( 2 ports onboard, 4 via pin header)
Serial ATA
2 ports, support RAID 0, 1
IrDA (for wireless communication)
Pin header on board
IDE Interface
Two channels; supports Ultra DMA 33/66/100
40-pin box-header x 1 (IDE1), 44-pin header x 1 (IDE2)
Watchdog Timer
Generates system reset; 256 levels
Keyboard and Mouse Connector
PS/2 type
Expansion Slots
1 PCI support 2 bus master, Mini PCI slot
Edge Connectors
PS/2 Keyboard/Mouse
VGA CRT
COM1 serial port
Parallel port
RJ-45 for LAN2 + USBx2 (USB0, 1)
RJ-45 for LAN1
RCA jack for TV out
Audio phone jacks (Speaker, Line in, Mic)
Power Connector
ATX
Form Factor

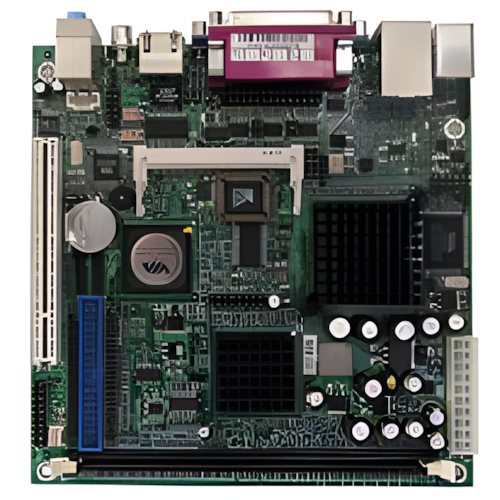

Mini ITX motherboard
Dimensions
170mm x 170mm

Operating Temperature

0°C~60°C (32°F~140°F)

Storage Temperature

-20°C~80°C (-68°F~176°F)

Relative Humidity
