Product Description:
MODEL- OMNIVS800 VENDOR- TRIPPLITE
FEATURES- Omni VS UPS System- Black tower
800VA Line interactive UPS for personal PCs and workstations.
800VA line interactive UPS, 7 outlets (6 UPS/surge and 1 surge-
only), Single line TEL/DSL line surge suppression, Enhanced
communications via USB port, free PowerAlert software (via
download) and cabling, Corrects brownouts as low as 83V.
Tripp Lite's OMNIVS800 line interactive UPS system offers voltage
regulation, surge suppression and long lasting battery support for
personal computers, internetworking equipment and other sensitive
electronics. Internal UPS circuits support entry level PC systems
for up to 60 minutes during power failures so that connected
equipment can be shut down without data loss.
Automatic Voltage Regulation (AVR) circuits regulate brownouts as
low as 83 volts back to usable levels without using battery power.

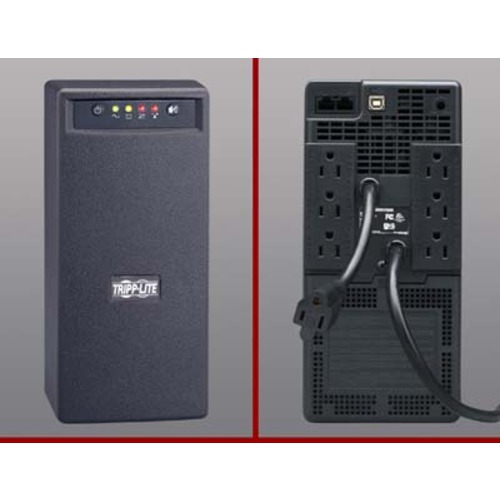

Offers complete desktop power protection in an attractive black
tower configuration. Includes 6 battery supported outlets for
computer, monitor and one vital system peripheral, plus 1
additional surge suppression-only outlet for printers and other
system accessories not requiring battery support. USB port enables
optional unattended system shutdown without data loss in the case
of extended power failure, USB cable included.
PowerAlert software available via free download from
www.tripplite.com. Built-in single line RJ phone suppression jacks
protect modem, fax machine, cordless phone or other peripheral with
a standard dialup/DSL phone connection. Built-in audible alarm and
4 front panel LEDs indicate line power status, battery power
status, battery low/replace status and voltage boost operation.
800VA/475 watt power handling ability supports entry-level PCs,
network workstations, point-of-sale equipment, small business phone
systems, audio/video equipment and home theater systems.
Offers 6 minutes battery runtime with a full load of 800VA and 19
minutes with a half load of 400VA. Supports battery replacement via
built-in access panel.
Find the TrippLite UPS appropriate for your needs. Try the TrippLite UPS Sizing Guide Today.
Includes OMNIVS Line Interactive UPS, USB and telephone cable, User
manual with warranty information.
* OMNIVS800 Uninterruptible Power Supply offers voltage regulation, surge
suppression and long lasting battery support.
* Supports entry level PCs up to 60 minutes during blackouts to enable
shutdown without data loss.
* Regulates brownouts as low as 83 volts back to usable levels without
using battery power.
* 6 UPS battery supported/surge protected outlets, plus 1 additional surge
suppression-only outlet.
* USB port and cable enables unattended shutdown in the case of extended
power failure.
* PowerAlert software available via free download from www.tripplite.com.
* Single line phone suppression protects standard dialup/DSL phone
connection.
* Audible alarm and 4 front panel LEDs offer complete UPS and line power
status information.
* 800VA/475 watt power handling ability supports a variety of sensitive
electronic equipment.
* 6 minutes full load runtime (800VA), 19 minutes half load runtime
(400VA).
* Supports battery replacement via built-in access panel.
* 2 year product warranty.
* $200,000 connected equipment Insurance (USA & Canada Only).
-- SPECIFICATIONs -------------------------------------
OUTPUT - Output volt amp capacity : 800 VA
Output watt capacity : 475 watts
Output nominal voltage : 120V AC
Output voltage regulation: BATTERY MODE- PWM sine wave 115V
+/-5%
Output frequency
regulation: LINE MODE- Passes line frequency
of 60Hz +/-10%
BATTERY MODE- Inverter output
regulated to 60Hz +/-0.5Hz
Outlet quantity/type : (7) NEMA 5-15R output receptacles
(6 with UPS and surge
suppression/1 with surge
suppression only).
INPUT - Maximum input amps/watts : 12A/1440 watts
Input connection type : NEMA 5-15P
Input cord length : 6 ft., 14 gauge
Recommended electrical
service: 15A 120V
BATTERY - Full load runtime : 6 minutes (800 VA)
Half load runtime : 19 minutes (400 VA)
DC system voltage : 12 V DC
Typical battery lifespan : 4~6 years typical
Battery recharge rate : 2~4 hours to 90%
Access : Door allows user replacement of
batteries.
VOLTAGE REGULATION-
Voltage regulation : Line interactive voltage regulation
corrects brownouts as low as 83V back
to usable values.
Direct pass through: Voltages of 106V and greater are passed
through to connected equipment
unchanged.
Brownout correction: Input voltages between 83 and 105 are
boosted by 14%.
LEDS ALARMS & SWITCHES-
Front panel LEDs : 4 front panel LEDs indicate line power
status, battery power status, battery
low/replace status and voltage
regulation operation.
Alarms : Audible alarm with 15 second delay
sounds to indicate loss of utility
power. Alarm can be silenced by
pressing front panel alarm cancel
button. Once silenced, alarm will
re-sound when approximately 2 minutes
runtime remain.
Switches : Includes 2 front panel switches - one
main on/off power switch and one dual
function "alarm cancel"/"self test"
button.
SURGE/NOISE SUPPRESSION-
AC surge suppression: 1920 joules
AC suppression
response time: Instantaneous
Dataline suppression: Single line TEL/DSL surge suppression
with RJ-style phone connectors
(center 2 wires protected, 260V
clamping), includes phone cable.
EMI/RFI AC noise
suppression: Yes
COMMUNICATIONS-
Network monitoring port: Single built-in USB port supports
on battery, low battery and power
restored messaging. Interface
supports timed inverter shutoff
after unattended shutdown.
Compatible with Tripp Lite's
PowerAlert and Watchdog service
software.
Software and cabling : USB cabling included, PowerAlert
software available for free
download at www.tripplite.com.
WatchDog compatibility : Yes, compatible with Tripp Lite's
Watchdog system service to restore
operation to locked equipment
through soft reboot of
application/OS or hard power
off/on reboot of connected
equipment -- ideal for unattended
kiosk applications.
LINE/BATTERY TRANSFER-
Transfer time from line
power to battery mode: 2-4 milliseconds
Low voltage transfer to
battery power: Switches to battery power as line
voltage decreases to 83 volts or
less. Resets to line power mode
as line voltage increases to 87V
or higher.
High voltage transfer to
battery power: Switches to battery power as
line voltage increases to 147
volts or higher. Resets to line
power mode as line voltage
decreases to 143V or less.
COLD START - Inverter can be "cold started" to enable temporary AC output
during a power failure.
MATERIAL - Made of PVC
FORM FACTOR - Tower, wall mountable with optional UPSWM accessory.
COOLING - Convection
ENVIRONMENTAL- Operating Temperature: +32 to +104 degrees Fahrenheit
Storage Temperature : +5 to +122 degrees Fahrenheit
Relative Humidity : 0 to 95%, non-condensing
APPROVALS - UL1778 (USA), cUL (Canada), FCC Class B (emissions),
NOM (Mexico), FCC Part 68/Industry Canada
(telecommunications).
SIZE - 5.25"w x 10.75"h x 7.25"d WT.- 21.2 lbs.
www.tripplite.com
|
