IEI Technology

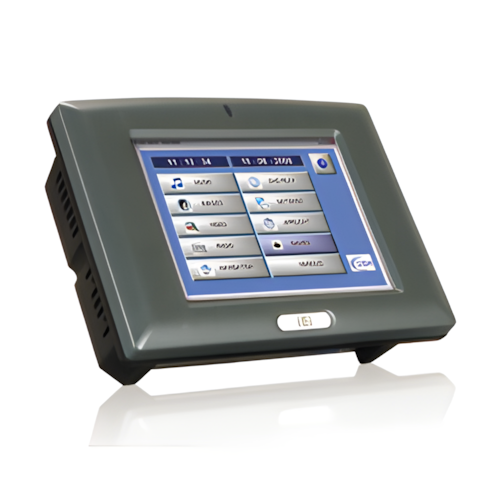

5.7" 400cd/m2 VGA fanless Panel PC,W/ Intel Atom Z530 CPU 1.6GHz,PoE IEEE 802.3af,touch screen,1GB DDR2 (with XPembedded AFLCF-057-US15W-XPE-R10 installed)


1704883_IEI_Technology_AFL057AZ530R1GR10_1.png-
Manufacturer IEI Technology
Mfg. Part # AFL-057A-Z530/R/1G-R10
ITEM# 1151704
Unit Price $1,163.60 (~CAD$1,450.43)
Availability In Stock
Buy


Shipping and Handling:
 INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation

No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]
[ View Detail Product Info ]


Product Description:
5.7" 400 cd/m2 VGA fanless panel PC with Intel® Atom™ Z530 1.6 GHz, PoE IEEE 802.3 af, touch screen,1 GB DDR2 553 MHz, RoHS
  • 5.7" PoE compliant Panel PC with resistive touchscreen
  • Support Power over Ethernet(PD) IEEE 802.3af
  • Intel® Atom™ processor Z510P/Z530P up to 1.6 GHz
  • Lower power consumption and fanless operation
  • IEEE802.3af Power Over Ethernet (PoE) compliant
  • One CompactFlash® slot
  • Wide operating temperature capability: -20°C to 60°C (AFL-057A-ZXX)
  • IEI One Key Recovery solution for rapid OS backup and recovery (over 4 GB storage capacity recommended)
  • IP64 compliant front panel
LCD Size 5.7"
Max Resolution 640 x 480
Brightness (cd/m2) 400
Contrast Ratio 300:1
LCD Color 262K
Pixel Pitch (mm) 0.06(H) x 0.18(V)
Viewing Angle (H-V) 140(H) / 100(V)
Backlight MTBF 50000 (LED backlight)
CPU Intel® Atom™ Processor Z530 1.6 GHz
Intel® Atom™ Processor Z510 1.1 GHz
Chipset Intel® SCH - US15W
RAM 1 x 200-pin SO-DIMM DDR2 533/400 MHz SDRAM (max. 2 GB)
I/O Ports and Switches 1 x RS-232/422/485 COM port
1 x RJ-45 for GbE (PoE 802.3af)
1 x USB 2.0
1 x Reset button
SSD CF type II
Watchdog Timer Software programmable supports 1~255 sec. System reset
Audio AMP 1.5 W+1.5 W
Construction Front Panel ABS + PC Plastic front frame
Mounting Panel, Wall, Stand and Arm (VESA 75 mm x 75 mm)
LED Function 1 x Power ON/OFF LED on front panel
Front Panel Color Gray 7539U
Dimension (WxHxD) (mm) 180 x 135 x 55
Operation Temperature -20°C~60°C
Storage Temperature (°C) -20°C~60°C
IP Level(front panel) IP 64
Safety CE, FCC, CCC, CB
Touch Screen Resistive Type 4-Wire (onboard touch controller IC)
Power Adapter Power: 25 W Input: 90 V AC~264 V AC @50/60 Hz Output: 5 VDC (Optional)
Power Requirement 5 V DC
Power Consumption 12 W
PoE Function -Require IEEE 802.3af 12.95W power input
-Power Device PD (Power-input)
