• Support Intel® Core™ i7/ i5 processors
• Supports up to 3.0GHz, 1066MHz FSB
• Two DDR3 SoDIMM, Max. 4GB memory
• Onboard Gigabit PHY and Intel® PCI-Express Gigabit LAN
• Integrated Graphics VGA for CRT /DVI/ LVDS
• 4x SATA, 10x USB 2.0, 4x COM, Watchdog timer
• 1x Mini PCI-E (Mini Card), 1x PCI, 1xPCI-E(x1)
• Optional AMT, RAID

SPECIFICATIONS

CPU Socket
rPGA Socket 989

CPU
Inte® Core™ i7/ i5 processors

Chipset
Intel® QM57 Express Chipset

BIOS
AMI BIOS, ACPI supported

System Memory
Two DDR3 SODIMM sockets, Max. 4GB
DDR3 800/1066, w/o ECC function

Integrated VGA
Intel(r) Auburndate DC Mobile Processor built-in graphics
Supports CRT, DVI-D and DVI-I (stacked)
Supports 24-bit single or dual LVDS display

LAN
Onboard Gigabit PHY (Intel 82577LM)
and Intel (82574L) PCI-Express Gigabit LAN

Audio
PCH built-in high definition audio controller with
Realtek codec ALC888 for 7.1 CH audio

LPC I/O
Fintek F81865 I/O controller supports 4x COM & HW monitoring

Serial ATA
PCH built-in SATA II (3.0Gb/sec)
Supports 4 ports

USB
PCH built-in USB 2.0 controller
Supports 10 ports

Digtial I/O
Supports 4 in, 4out

Watchdog Timer
256 segmaents, 0, 1, 2...255 sec/min

Keyboard and Mouse Connector
1x PS/2 type

Power Connector
ATX 20-pin + 4-pin 12V connectors

Expansion Slot

PCI, PCI-E(x1) & Mini PCI-E socket

Edge Connectors
PS/2 KB/Mouse Mini DIN with dual USB stacked, DVI-D with DVI-I stacked,
2x RJ45 with dual USB stacked, COM1, VGA CRT, 3x1 Audio jacks

Onboard Connectors/Headers
Digital I/O, COM2, COM3, COM4, 4x USB, DF13 for LVDS,
Audio (line out / Mic) CD in, SPDIF-out, 4x SATA

Form Factor

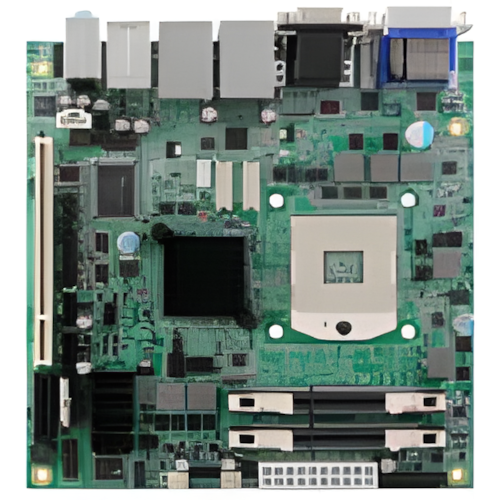

Mini-ITX Motherboard

Dimensions
170mm x 170mm

Power Consumption
TBA

ENVIRONMENTAL FACTORS

Operating Temperature :0°C~60°C (32°F~140°F)

Storage Temperature :-20°C~80°C (-4°F~176°F)

Relative Humidity :10%~90% (non-condensing)
