Product Description:

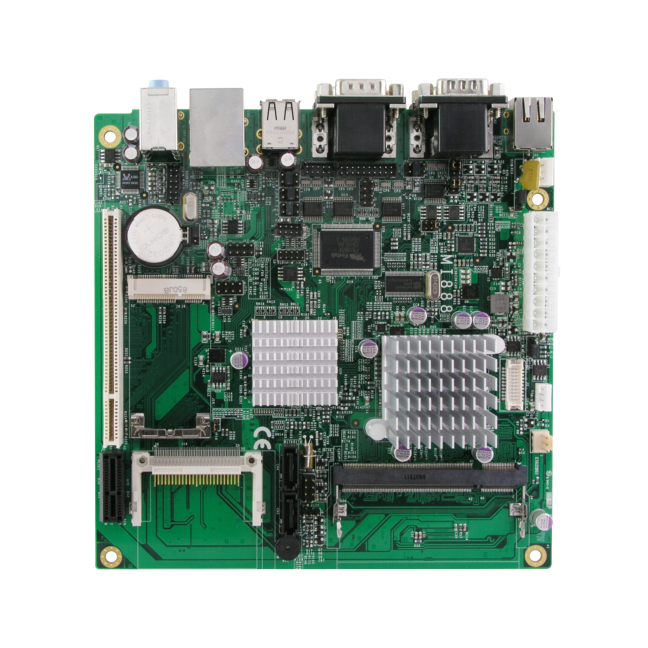

Intel® Atom™ N450 1.66 GHz processor Mini-ITX motherboard w/ VGA, 1x PCI-E GbE LAN
- Onboard Intel® Atom™ Processor N450/D510, 1.6GHz, 533MHz FSB
- 1x DDR2 SO-DIMM, Max. 2GB
- Supports CRT and LVDS (dual display)
- Onboard PCI-E Gigabit LAN
- 2x SATA, 8x USB 2.0, 4x COM, 1x IDE
- CF socket, 1x PCI-E (x1), 1x Mini PCI-E(x1)
SPECIFICATIONS
CPU
Intel® Atom™ N450/D510 Single/Dual Core processor
1.66GHz speed
512KB/1MB L2 cache
Chipset
Intel® 82801HM I/O Controller (ICH8M)
BIOS
AMI BIOS, ACPI supported
System Memory
One SO-DIMM PC533 DDR2 socket
Max. 2GB for N450 / 4GB for D510
Integrated VGA
Embedded Gen3.5 + GFX Core VGA controller
LVDS
Supports 18-bit single channel LVDS
LVDS interface via DF13 socket
LAN
Realtek 8111DL PCI-E Gigabit LAN
RJ45 on board
Audio
Intel integrated HD audio controller with ALC662 for
5.1 channels
LPC I/O
Winbond W83627UHG chipset, Fintek 81216DG
1x IDE, 1x KB, 1x mouse, 2x SATA, 4x COM
Serial Ports
One RS232/422/485 and three RS-232 COM ports
Serial ATA
Supports 2 SATA ports
USB (2.0)
Supports 8 USB ports (4 ports + 4 ports via pin header)
Keyboard and Mouse Connector
PS/2 type
Watchdog Timer
Generates system reset; 256 levels
Hardware Monitoring
Built in W83627UHG; monitors system/CPU
temperature and voltage status
Digital I/O
4 in / 4 out
Power Connector
ATX
Expansion Slots
CF socket, 1x PCI-E (x1), 1x Mini PCI)
Edge Connectors
PS/2 KB/Mouse Mini DIN, VGA CRT, COM1, COM2/COM3, 4x USB, Triple jack for audio
Onboard Connectors/Headers
IDE1 (40-pin), CF socket (solder side), Digital I/O,
COM4, 2x SATA, 4x USB, front audio, LVDS
Form Factor
Mini-ITX Motherboard
Dimensions
170mm x 170mm
Power Consumption
Intel® Atom™ N450 1.66GHz w/ 1GB DDR2
+5V: 3.4A, +12V: 0.44A
Intel® Atom™ D510 1.66GHz w/ 1GB DDR2
+5V: 3.5A, +12V: 6.71A
ENVIRONMENTAL FACTORS
Operating Temperature : 0°C~60°C (32°F~140°F)
Storage Temperature : -20°C~80°C (-4°F~176°F)
Relative Humidity : 10%~90% (non-condensing)
|
