IBASE Technology

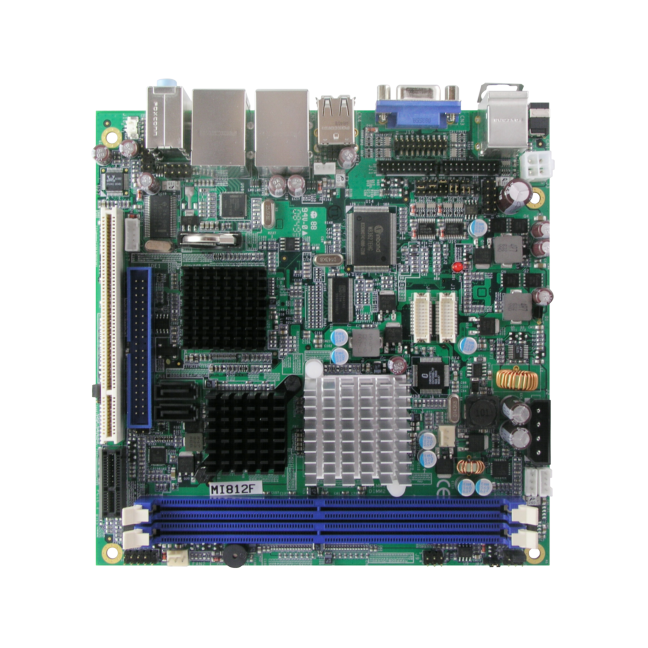

ITX, Intel Atom N270 (1.6GHz) onboard, 945GSE+ICH7M, w/ ICH LANx1, VGA (CRT/LVDS-24bit), COMx4, DC-In 12V/19V, CFx1, PCIx1+PCI-E(1x)x1+mPCI-Ex1, (RoHS)

Manufacturer	IBASE Technology
Mfg. Part #	MI812
ITEM#	1013871
Unit Price	$253.00 (~CAD$315.37)
Availability	Back Order [ Get notified when product becomes available. ]
Buy

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

[ View Detail Product Info ]

Product Description:

Onboard Intel® Atom^TM Processor N270,1.6GHz, 533MHz FSB
2x DDR2 DIMM, Max. 2GB
Supports CRT and LVDS (dual display)
Onboard 10/100 BaseT and PCI-E Gigabit LAN
2x SATA II, 8x USB 2.0, 4x COM, 1x IDE
1x PCI, 1 x PCI-E (x1), 1x Mini PCI-E(x1)

CPU
Intel® Atom^TM N270 Single Core processor
1.60GHz speed

CPU Front Side Bus ( FSB )
533MHz

Chipset
Intel® 945GSE
ICH7M

BIOS
Award BIOS, ACPI supported

System Memory
Two DDR2 sockets support up to 2GB DDR2 SDRAM
PC533 DDR2 SDRAM

Integrated VGA
Intel® 945GSE integrated Graphics Media Accelerator (GMA 950) supports CRT

LVDS
Supports 24/18-bit dual channel LVDS
LVDS interface via 2x DF13 sockets

LAN
Intel® ICH7M integrated 10/100BaseT LAN,
optional Intel® 82574L PCI-E Gigabit LAN

Audio
ICH7M integrated audio controller with ALC662 for
5.1 channels

LPC I/O
Winbond W83627EHG chipset, Fintek 81216DG
1x IDE, 1x KB, 1x mouse, 4x COM 2x SATAII

Serial Ports
One RS232/422/485 and three RS-232 COM ports

Serial ATA
Supports 2 SATA II ports

USB (2.0)
Supports 8 USB ports (6 ports + 2 ports via pin header)

Keyboard and Mouse Connector
PS/2 type

Watchdog Timer
Generates system reset; 256 levels

Hardware Monitoring
Built in W83627EHG; monitors system/CPU
temperature and voltage status

Digital I/O
4 in / 4 out

Power Connector
DC power jack for +12V/+19V DC-in

Expansion Slots
1x PCI, 1x PCI-E (x1), 1x Mini PCI)

Edge Connectors
DC-in, PS/2 KB/Mouse Mini DIN, VGA CRT, 1x or 2x RJ-45, 4x USB, Triple jack for audio

Onboard Connectors/Headers
IDE1 (40-pin), CF socket (solder side), Digital I/O,
4x COM, 2x SATA, USB5/6/7/8, Digital I/O, LPT

Form Factor
Mini-ITX Motherboard

Dimensions
170mm x 170mm

Power Consumption
Intel® Atom^TM N270 1.6GHz w/ 2x 1GB DDR2-800
+12V: 2.65A

Rear Connectors

Environmental Factors
Operating Temperature: 0°C~60°C (32°F~140°F)
Storage Temperature: -20°C~80°C (-4°F~176°F)
Relative Humidity: 10%~90% (non-condensing)
